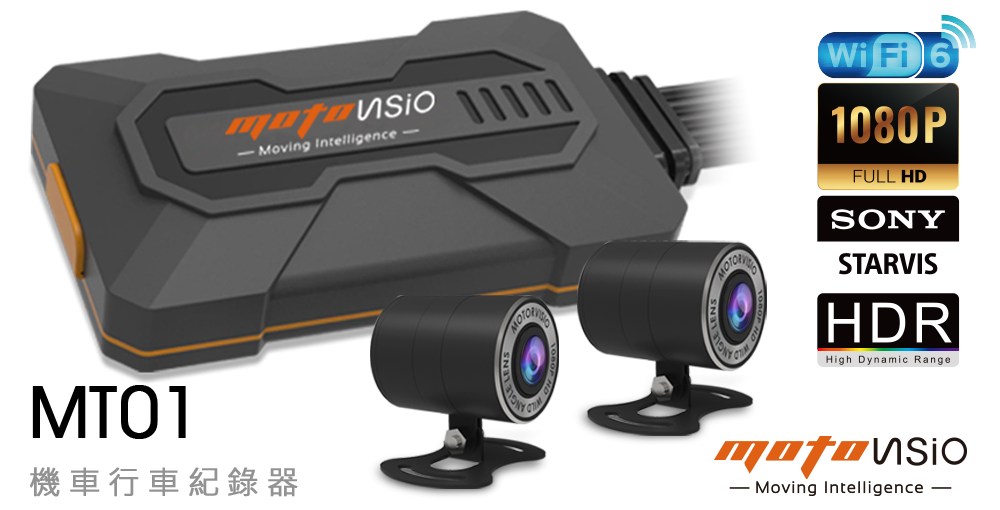

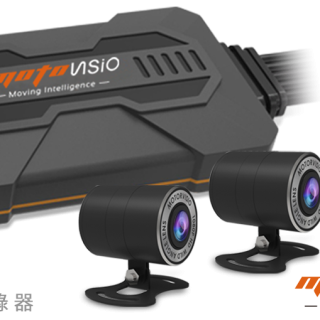

MT01
· Emergency button / photo + indicator light
· HDR and starlight night vision features
· 150-degree wide-angle lens / F2.0 aperture
· G-Sensor can record 3-axis information
· External indicator light and camera: IP67 / main unit: IP65
· Can record sound with noise reduction function
· Recommended to use Class 10 U3 or above SD card
· Supports maximum storage capacity of 256GB SDXC SD card
· Automatically starts recording and loops recording upon power on
· GPS positioning and automatic time calibration and hardware electronic dog function
· Has tipping and locked event recording function
· MOV recording format
· Supports recording after engine shutdown
· Wi-Fi supports mobile APP Live View, can download videos to mobile (Android & iOS search: Magic Vision)
※ If there are any errors in the website information, please refer to the actual product.
| MT01 | |
|---|---|
| camera | |
| Resolution | 1080P + 1080P |
| Image component | SONY IMX307 |
| Aperture | F2.0 |
| Field of View (FOV) | H:150° V: 80° |
| Camera output | 2K@30fps / 1080P@30fps |
| DVR main unit | |
| SoC | NT96565 |
| Power | DC 9 ~ 16V |
| Image input | AHD / Ethernet, automatic detection of input signal format |
| Compression format | H.264 / H.265 |
| Data storage | Micro SD memory card (64 ~ 256 GB) |
| EIS electronic image stabilization | not supported |
| loop recording |
The default duration for each segment is set to 1 minute (can be adjusted in the menu to 1 minute / 3 minutes / 5 minutes) |
| emergency video locking |
Automatic Locking: Under the condition of gravity sensing being activated, when an external force impact occurs, the main unit automatically locks the currently recorded video to prevent the video from being overwritten (retaining all data from 1 second before to 14 seconds after). Manual Emergency: During the recording process, press and hold the emergency button to lock the currently recorded video, preventing it from being overwritten in loop recording (keeping all data from 1 second before to 13 seconds after). |
| RTC |
Built-in |
| Format memory card |
Support |
| Input / Output Interface |
GPS: G-mouse type / Camera: waterproof BMW head |
| Wi-Fi |
IEEE802.11g / n |
| Waterproof rating |
External indicator light and camera: IP67 / Main unit: IP65 |
| APP |
Android / iOS |
| Operating temperature |
-20°C ~ +70°C |
| Recording format |
MOV |
| Hardware electronic dog function |
Support |
